Roof Mounting

Every Roof.
Every System.

Purpose-engineered rooftop solar mounting hardware for every Indian roof type — tile, RCC, metal, corrugated, standing seam and shed.

Jump to roof type:
Solar panels on rooftop installation

Rooftop Solar.
No Roof Left Behind.

SOLBE makes mounting hardware for every roof type found across India.

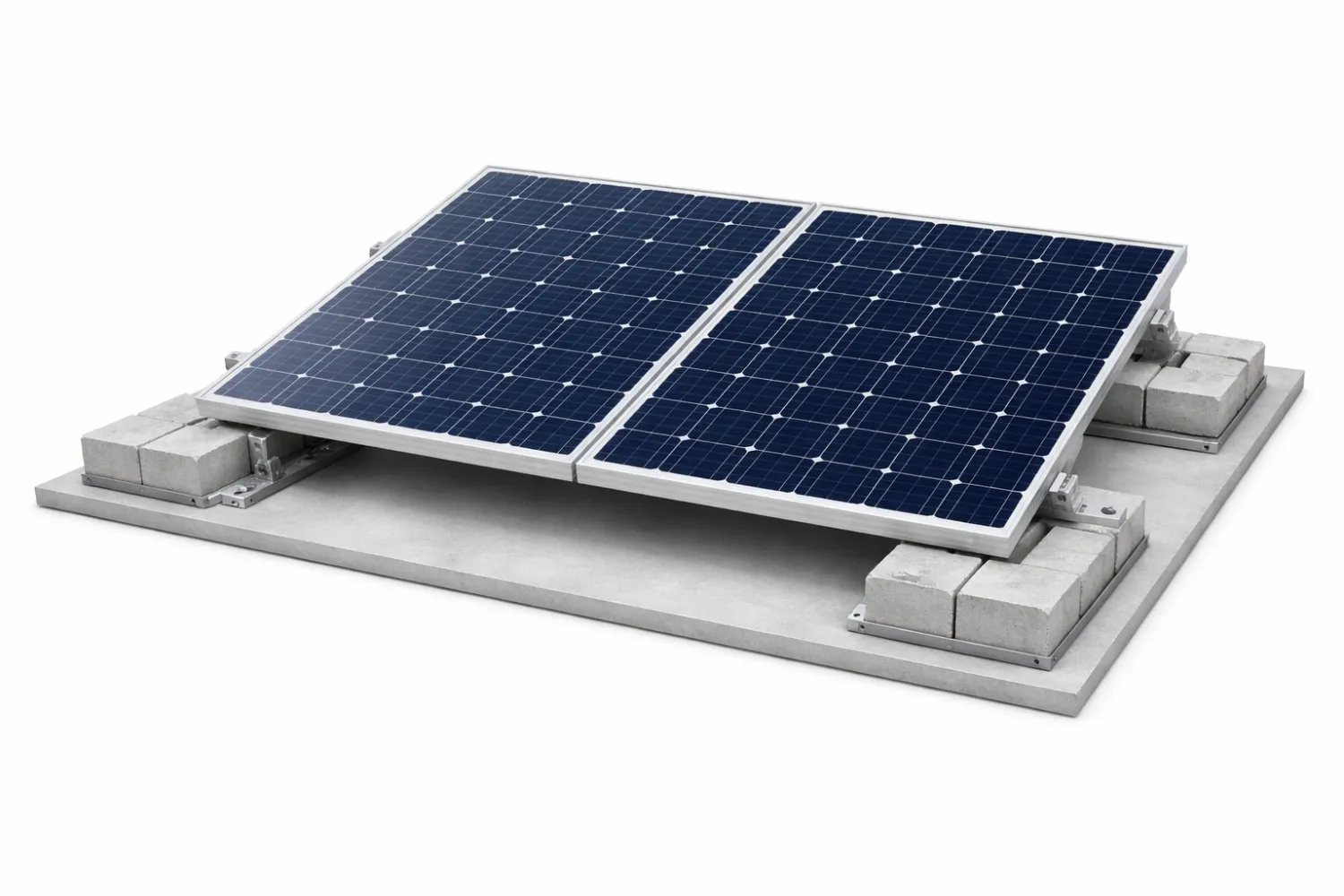

Flat roof solar mounting
RCC Flat Roof
Tile roof solar installation
Tile Roof
Weatherproof
EPDM gaskets on all penetration points
AL · SS · GI
Three material grades per roof type
Fast Install
Pre-drilled, pre-kitted per project
6 Roof Types
Every common Indian roof covered
24-hr Dispatch
Stock items shipped in 24 hours
Product Range

Roof Mounting Systems

Tin / Corrugated Sheet Roof Mount solar mounting
Corrugated
01

Tin / Corrugated Sheet Roof Mount

Designed for profiled metal sheet roofs common in industrial and warehouse buildings.

Sheet profile: Trapezoidal & corrugated
Hook material: AL or GI
EPDM gasket included
No roof penetration required
Tilt: 5° – 25° adjustable
RCC Flat Roof Ballast Mount solar mounting
Flat Roof
02

RCC Flat Roof Ballast Mount

Ballast-weighted aluminium frame system for RCC flat rooftops.

Zero RCC penetration
Concrete ballast design
Tilt: 10° – 30° fixed
Wind uplift engineered
AL frame + GI ballast tray
Tile Roof Hook Mount solar mounting
Tile Roof
03

Tile Roof Hook Mount

Stainless steel roof hooks engineered for clay and concrete tile roofs.

Clay, concrete & Mangalore tile
SS 304 hook body
Rafter bolt fixing
Adjustable height 40–120mm
Tile undisturbed finish
Standing Seam / Metal Roof Mount solar mounting
Standing Seam
04

Standing Seam / Metal Roof Mount

Clamp-on attachment for standing seam metal roofs.

No drilling required
AL clamp on seam profile
Fits 25–65mm seam height
SS fasteners included
Roof warranty preserved
Asbestos / Fibre Cement Sheet solar mounting
Fibre Cement
05

Asbestos / Fibre Cement Sheet

Purpose-designed fixing system for fragile fibre cement roofs.

Over-purlin spanning design
No sheet contact point load
Safe walk-on installation
Material: AL + GI purlin
Reinforced fixing blocks
Polycarbonate & GI Sheet Shed solar mounting
Shed / PC
06

Polycarbonate & GI Sheet Shed

Lightweight mounting solution for polycarbonate and GI shed roofs.

Low dead load design
AL frame 2.5 kg/m²
Multi-purlin load spread
Quick-fix clamp kit
Suitable for PC & thin GI

Choose the Right Grade

AL Aluminium

Lightweight, non-corrosive and ideal for residential and commercial rooftop systems. 6063-T5 alloy with 15–25 micron hard anodising. Best for coastal and urban environments.

  • Weight: 2.7 g/cm³
  • Alloy: 6063-T5
  • Surface: Hard anodised
  • Best for: All roof types
SS Stainless Steel

Grade 304 and 316 stainless steel for maximum corrosion resistance. Mandatory for marine, coastal within 5km, and chemical plant environments. Used for hooks, clamps and fasteners.

  • Grade: 304 / 316
  • Surface: Passivated
  • Best for: Marine & coastal
  • Life: Extended lifetime
GI Galvanized Iron

Hot-dip galvanized in compliance with IS 2629 and IS 4759 standards to provide long-term corrosion protection for structural members in industrial and agricultural environments.

  • Coating: IS 2629 / IS 4759
  • Standard: IS 2629
  • Best for: Industrial sheds
  • Life: Long-term durability
Rooftop solar installation

Tell Us Your Roof Type

Share your roof type, area and panel count — we'll recommend the right system and send you a complete hardware kit quote.
